    Baofeng UV-6D walkie talkie

    Baofeng UV-6D
    minimum order:
    1 acre
    Supply Ability:
    35000acre / Month
    Country of Origin:
    Guangzhou
    Description:
    UHF: 400-480 MHz
    VHF
    Quantity:
    Contact Now
    add to cart
    Buy Now
    • Type:Handheld
    • Place of Origin:CN;FUJ
    • Brand Name:Baofeng
    • Model Number:UV-6D
    • Dimensions:125 x 61 x 29 mm
    • Frequency Range:400 - 480 MHz
    • Storage Channel:16
    • Talk Range:1-3KM
    • Certification:Original
    • Output:≤5 W
    • Frequency Range:400 - 480 MHz
    • Storage Channel:16
    • Rated voltage:DC 7.4 V
    • Battery Capacity:2000 mAh
    • Dimension:125 x 61x 29 mm
    • Receiving Current:≤ 400m A
    • Packing Details:30 Units/CTN
    • Audio Power:1 W
    • Modulation Sensitivity:8-12mV

    Hot Sell Baofeng UV-6D professional uhf 8W Handy Walkie Talkie portable 2 Way Ham Radio

    Baofeng UV-6D walkie talkie is a highly cost-effective walkie talkie product with excellent quality. It is very suitable for both business and personal use.

    The performance of the Baofeng UV-6D walkie talkie is excellent. It carries high-precision transmission chips and receivers, ensuring high communication quality, avoiding poor signal conditions, and even stable use in weak signal environments.

    The Baofeng UV-6D walkie talkie can achieve single frequency, dual frequency, and multi frequency band switching, and also has various practical functions such as fast frequency band hopping, CTCSS/DCS encoding and decoding. In addition, for some professional users, it can also perform reset and full reset operations.

    Ecome-ET-650SEcome-ET-79Ecome-ET-D889Ecome-ET-D446Motorola-XiR-P8668iEcome-T-220Motorola-XiR-P3688Kenwood-TM-481AEcome-MT-660Ecome-MT-690
    Products display

    UV-6 (1)

    Features

    1)Output : 8W

    2)FrequencyRange:400.00-480.00 MHz

    3)PC Program

    4)FM Radio Function

    5)Voice Prompt

    6)DTMF Side Tone

    7)51CTCSS and 210 DCS Codes

    8)Step Frequency(2.5,5,6.25,10,12.5,20,25KHz)

    9)BatterySaving

    10)VOX Function

    11)Busy Channel Lock Function

    12)Low Battery Warning

    13)Over Voltage or Low Voltage Protection

    14)Dual Channels Watch

    15)Cable Copy

    16)3 Scanning Ways (Time, Carrier wave, Search )

    17)PTT-ID (Press PTT to transmit code, release PTT to transmit code, or both can transmit code)

    18)Alarm Function

    19)Channel Monitor

    20)TOT (Time-out Timer)

    21)High &Low Power Switchover

    22)Chinese/English Switch

    23)1750KHz Relay Forwarding Confirmed

    24)U/V Cross Band Dual Watch

    25)EOT Beep Tone

    26)Dimension: 255 x 61 x 29 mm

    Unity Section:

    Frequency Range

    400.00- 480.00MHz

    Storage Channel

    16

    Step Frequency

    2.5/5/6.25/10/12.5/20/25KHz

    Rated voltage

    DC 7.4V

    BatteryCapacity

    2000 m Ah (Li-ion Battery)

    BatteryLife

    About 10 Hours

    Frequency Stability

    ±2.5ppm

    Work Temperature

    -20℃to +60℃

    Frequency Combination

    PLL frequency synthesis

    Antenna Impedance

    50 Ω

    Wok Mode

    Same Frequency simplex Operation or Different Frequency simplex Operation

    Dimension

    125 x 61 x 29 mm(Excluded Antenna)

    Weight

    180g

    Transmitter

    Output Power

    5W/1W

    Modulation Mode(W/N Band)

    FM (F3E)

    Maximum Frequency Deviation (W/N Band)

    <5KHz(W),<2.5KHz(N)

    Spurious Radiation

    ≤7.5µW

    Adjacent channel power

    65dB (W) ,55dB (N)

    Radiation

    <-60 dB

    Audio Distortion

    <5 %

    SNR

    45dB(W), 40dB(N)

    CTSCC/DCS Frequency Deviation(W/N Band)

    0.7±0.1KHz (W), 0.4±0.1KHz (N)

    Modulation Sensitivity

    8-12mV

    Transmitting Current

    ≤1300mA

    Receiver

    Sensitivity

    <0.20µ V (12dB SINAD)

    Audio Power

    1 W

    Inter modulation Interference Resistance

    ≥65dB (W), ≥55dB (N)

    Adjacent channel Sensitivity (W/N Band)

    ≥65dB (W), ≥55dB (N)

    Audio Distortion

    5 %

    Receiving Current

    ≤ 380m A

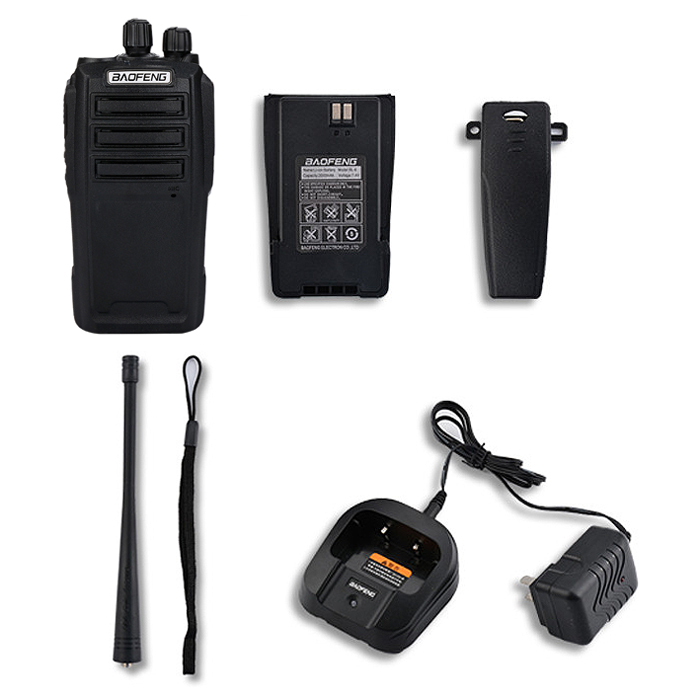

    UV-6 (3)

    FAQ

    Q1: Can your radios be customized with my brand?

    A: Of course. Generally, logos, outer packaging, patterns, etc. can be customized. The minimum order quantity is usually 200 pieces.

    Q2: Can you offer the sample for me to test the quality first?

    A: Yes,we can offer the sample, but sample cost and shipping cost need to pay by yourself, the fee will return to you when place order quality.

    Q3: Do you have radio agent certificate?

    A: Yes,we are, Icom, Hytera, Baofeng,Vertex these radio authorized agent,all of these certificates we have and can offer to you.

    Q4: What is your radios warranty?

    A: Radio body:1 year, accessories:6 months

    Q5: What is your lead time for the radio?

    A: 2-3 days for order prepare after we get payment. Add 5-6 days for Express transportation.
