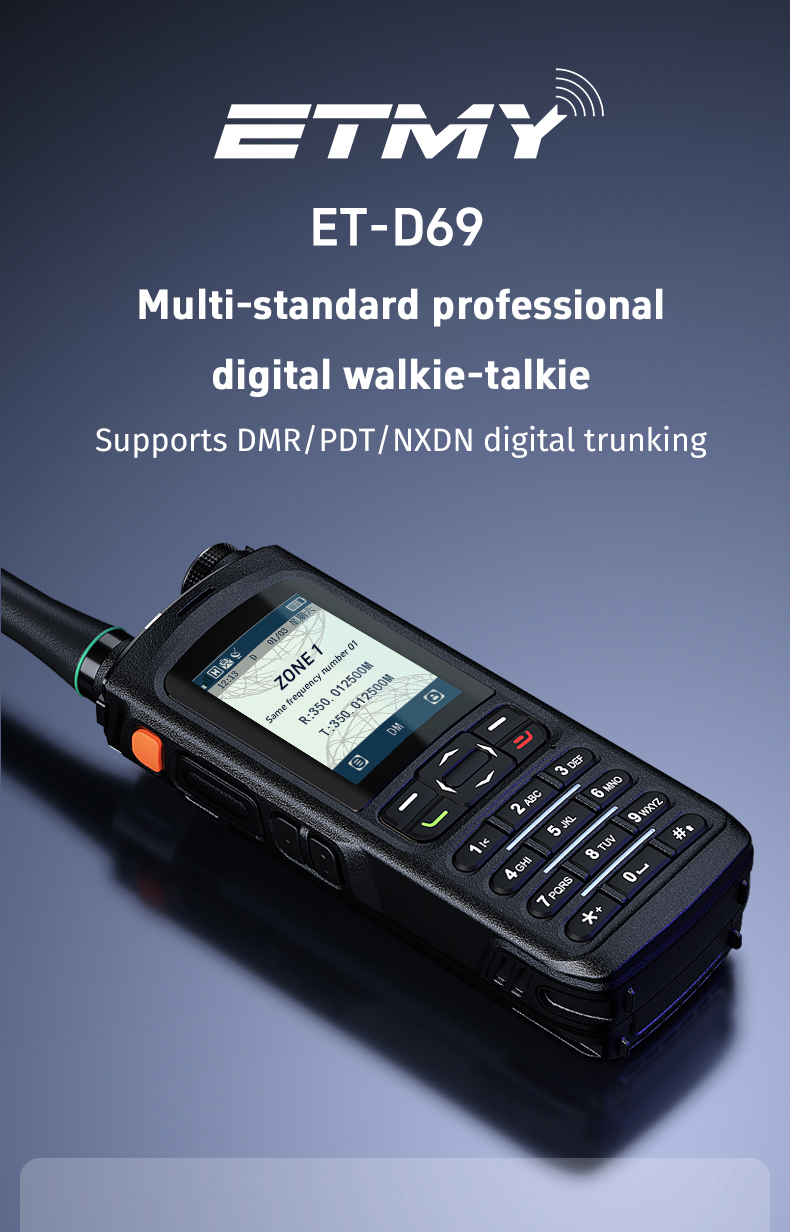

ETMY ET-D69 dmr walkie talkie
ETMY ET-D69 dmr tier 3 ht dmr digital 2 way radio for sale
Product Information
Support NXDN/DMR standards
The ET-D69 radio supports NXDN and DMR standards, which means it can provide wider compatibility and higher communication efficiency.
2-inch large color screen
ETMY ET-D69 is equipped with a 2-inch large color screen, providing users with a clear visual experience. The color screen not only makes the information display more intuitive, but also improves the user interface friendliness and makes operation more convenient.
AES256 advanced encryption
ET-D69 supports AES256 advanced encryption, which is a powerful data protection measure to ensure the security and privacy of communication content. This encryption technology provides up to 128-bit data bit encryption keys, making the ET-D69 more secure and reliable when handling sensitive communications
GPS positioning
The ET-D69 has a built-in GPS positioning function that can record and track the location information of the radio in real time. This function provides great convenience for industries that require precise positioning, such as logistics, security patrols, etc.
Advanced functions
ET-D69 has a fall alarm function, which can automatically sound an alarm when the user accidentally falls, which is an important safety feature for people who need to work in dangerous environments. In addition, it also supports vibration prompts and emergency alarm functions to ensure that users will not miss any important communications.
Functions
- Supports Multiple Work Mode: direct mode (analog and digital),repeater mode(analog and digital), digital trunking mode
- Supports Multiple Standard Protocols:
- DMR/NXDN
- Beidou/GPS Positioning
- 2.0 inch HD Color Display
- Man Down
- Vibration Function
- Advanced Encryption:ARC4 and AES256
- Supports Recording Fuction(digital mode)
- Emergency Alarm
- VOX
- Short Message
- TX Priority Interrupt
Accessories
 Charger |  Antenna |  Back clip |
 Li-ion battery(2000mAh) |  USB Cable |  Lanyard |
Specifications
| General | |
| Frequency | 136~ 174MHz 350~400MHz 400~470MHz |
| Channel Capacity | 2000/ 64 Zones |
| AntennaImpedance | 50Ω |
| Operating Temperature | -20℃~60℃ |
| Operating Voltage | DC 7.4V |
| Dimension | 134*58*32 mm(Not include the antenna) |
| Weight | 266g |
| Battery Capacity | 2000mAh |
| Protection grade | lP68 |
| Transmitter | |
| Output power | ≤1W/≤5W |
| Modulation | 16KθF3E / 11KθF3E |
| 4FSK digital modulation | 12.5KHz（data only）7K60FXD 12.5KHz（data＋voice）7K60FXE |
| Modulation limit | ±2.5kHz@12.5kHz/±50kHz@25kHz |
| AudioResponse | +1~-3dB |
| Audio distortion | ≤3% |
| Frequency stability | +1.5ppm |
| Receiver | |
| Receive Sensitivity | Analog SINAD: 0.22μV Digital(5%BER): 0.3μV |
| Audio Power | ≥1W |
| Signal-to-noise ratio(SNR) | -40 dB |
| Hum and noise | -40dB@12.5kHz/-45dB@25kHz |
| Intermediation | 70dB |
| Spurious emissions | <-57dBm |
FAQ
Q1: Can your radios be customized with my brand?
A: Of course. Generally, logos, outer packaging, patterns, etc. can be customized. The minimum order quantity is usually 200 pieces.
Q2: Can you offer the sample for me to test the quality first?
A: Yes,we can offer the sample, but sample cost and shipping cost need to pay by yourself, the fee will return to you when place order quality.
Q3: Do you have radio agent certificate?
A: Yes,we are, Icom, Hytera, Baofeng,Vertex these radio authorized agent,all of these certificates we have and can offer to you.
Q4: What is your radios warranty?
A: Radio body:1 year, accessories:6 months
Q5: What is your lead time for the radio?
A: 2-3 days for order prepare after we get payment. Add 5-6 days for Express transportation.
