ETMY ET-R36 relay walkie talkie
ETMY ET-R36 lora radio,repeater walkie talkie,relay walkie talkie
Main features
One of the core selling points of the ETMY ET-R36 relay walkie-talkie is its support for multi-hop relay functionality. This technology enables each intercom to serve as a communication signal source, forming a powerful intercom network. Through multi-level multi-hop relay technology, ET-R36 can realize signal relay and forwarding, greatly extending the wireless communication distance and making the signal coverage wider. This centerless self-organizing network feature not only saves frequency resources, but is also easy to use, portable and quick to deploy.
Another notable feature of the ETMY ET-R36 repeater walkie-talkie is its up to 5W output power. This high-power output ensures strong signal penetration and coverage, making it excellent in basements, tunnels, outdoor activities, construction sites, mining and other situations where large-scale communications are required.
ETMY ET-R36 uses digital signal transmission. Through digital processing technology, it can effectively resist external interference and ensure clear voice transmission. Compared with traditional analog walkie-talkies, digital walkie-talkies have significant advantages such as strong voice anti-interference ability, high confidentiality, narrower channel bandwidth, and stronger data transmission capabilities.
ETMY ET-R36 repeater walkie-talkie supports VHF frequency band, which enables it to cover a wider communication range, including but not limited to the frequency range of 136-174MHz. The addition of VHF frequency band makes ET-R36 not only suitable for urban environments, but also able to provide stable communication services in suburban and remote areas.
Other features
- Duplex mode, Relay Function
- Multi-level networking
- Wide signal coverage range
- Independent algorithm,
- Never cross frequency
Accessories

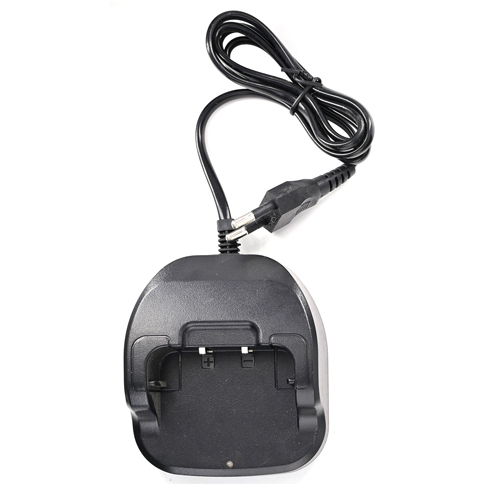

 Antenna |  Battery |  Charging base |
 Lanyard |  Back clip |
Specifications
| Parameter | Details |
|---|---|
| Frequency Range | VHF: 136–174 MHz / UHF: 400–480 MHz |
| Channel Number | 16 |
| Operating Temperature Range | -25°C ~ +60°C |
| Operating Voltage | DC 7.4V |
| Dimension | 109 × 60 × 30 mm (Excluding antenna) |
| Weight | 266 g (Include battery, antenna) |
| Battery | 2600 mAh lithium battery |
| Transmission | |
| Frequency Stability (-25 to 55, 25 Ref) | 1.25 ppm |
| Power Output | ≤5 W |
| Modulation Limiting | ±≤5 kHz @ 25 kHz |
| Audio distortion | <5% |
| FM Hum & noise | 45 dB @ 25 kHz |
| Conducted/ Radiated Emission | 36 dBm @ < 1 GHz, -30 dBm @ > 1 GHz |
| Adjacent Channel Power | -65 dB @ 25 kHz |
| Receiving | |
| Sensitivity (12 dB SINAD) | 0.20 µV @ 12.5 kHz / 25 kHz typical |
| Intermodulation | 60 dB |
| Adjacent Channel Selectivity | 65 dB @ 20/25 kHz |
| Spurious Rejection | 65 dB |
| Rated Audio | 1 W |
| Audio Distortion @ Rated Audio | 5% @ 1 W |
FAQ
Q1: Can your radios be customized with my brand?
A: Of course. Generally, logos, outer packaging, patterns, etc. can be customized. The minimum order quantity is usually 200 pieces.
Q2: Can you offer the sample for me to test the quality first?
A: Yes,we can offer the sample, but sample cost and shipping cost need to pay by yourself, the fee will return to you when place order quality.
Q3: Do you have radio agent certificate?
A: Yes,we are, Icom, Hytera, Baofeng,Vertex these radio authorized agent,all of these certificates we have and can offer to you.
Q4: What is your radios warranty?
A: Radio body:1 year, accessories:6 months
Q5: What is your lead time for the radio?
A: 2-3 days for order prepare after we get payment. Add 5-6 days for Express transportation.
