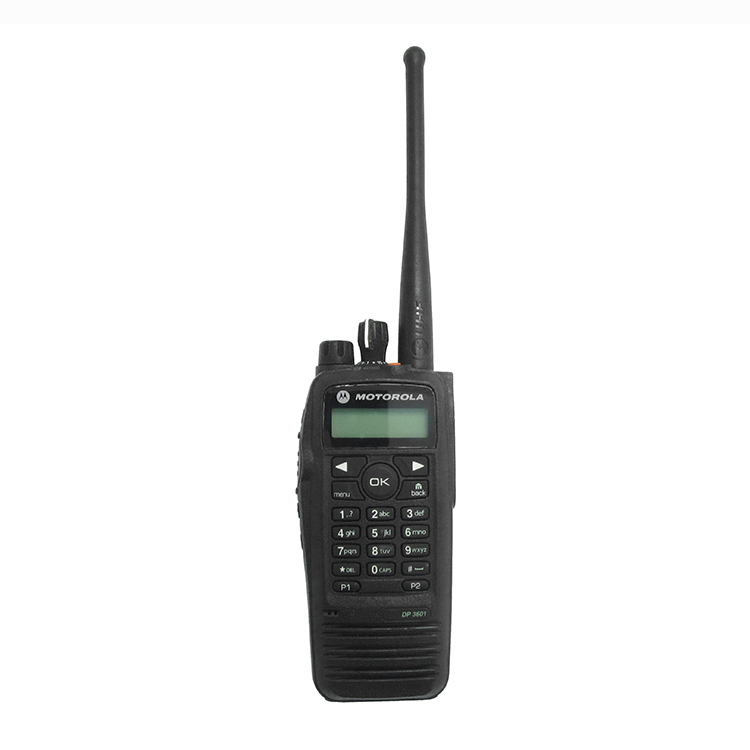

Motorola DP3601
motorola dp3601 fuses clear DMR voice, GPS, text and remote-kill safety in one intrinsically-safe unit—cutting install risk and unlocking service revenue for integrators.
Description:
VHF: 136~174 MHz
UHF: 403~470 MHz
UHF: 450-512MHz
Quantity:
motorola walkie talkie price dp3601 motorola dmr vhf two way radios for sale
Main features
Zone-to-Dispatch Clarity
With motorola dp3601, every syllable survives refinery noise thanks to AMBE+2 digital voice and a 0.5W front speaker—delivering the same intelligibility our clients expect from the entire range of motorola dmr radios, but in an intrinsically-safe package.
With motorola dp3601, every syllable survives refinery noise thanks to AMBE+2 digital voice and a 0.5W front speaker—delivering the same intelligibility our clients expect from the entire range of motorola dmr radios, but in an intrinsically-safe package.
GPS & Text, No Add-ons
A built-in GPS module and free-form SMS come standard in motorola dp3601, turning the radio into a location-tracking node that drops straight into CAD systems.
A built-in GPS module and free-form SMS come standard in motorola dp3601, turning the radio into a location-tracking node that drops straight into CAD systems.
Five Programmable Keys
Side and front buttons can be scripted for one-touch channel hop, lone-worker toggle, or emergency broadcast—reducing user training time and differentiating your package from vanilla motorola security radios.
Side and front buttons can be scripted for one-touch channel hop, lone-worker toggle, or emergency broadcast—reducing user training time and differentiating your package from vanilla motorola security radios.
IP57 & MIL-STD Armor
Submersible to 1 m for 30 min and tested to 810F salt/dust/shock, motorola dp3601 shrinks site spares and keeps integrators out of the service truck.
Submersible to 1 m for 30 min and tested to 810F salt/dust/shock, motorola dp3601 shrinks site spares and keeps integrators out of the service truck.
Remote Kill & Stun
Over-the-air radio disable and enable turn a stolen unit into a paperweight without touching the site firewall—peace-of-mind that seals the deal when pitching motorola dmr radios to high-security plants.
Over-the-air radio disable and enable turn a stolen unit into a paperweight without touching the site firewall—peace-of-mind that seals the deal when pitching motorola dmr radios to high-security plants.
1000-Channel, Multi-Site Roaming
From single-site warehouses to IP Site Connect campuses, motorola dp3601 carries 1000 channels and seamless roaming—future-proofing the network you design today.
From single-site warehouses to IP Site Connect campuses, motorola dp3601 carries 1000 channels and seamless roaming—future-proofing the network you design today.
Other functions
- TX/RX frequency per channel
- High/Low power output
- Analog/DMR mode toggle
- Channel bandwidth 12.5/25 kHz
- Color code (DMR)
- CTCSS/DCS encode & decode
- Scan list & priority channel
- VOX sensitivity level
- Lone-worker timer interval
- Emergency button action
Accessories
Specifications
| DP3601 Specifications | |
| Channel Capacity | 1000 |
| Frequency (Band Ranges) | VHF: 136–174 MHz UHF1: 403–470 MHz UHF2: 450–512 MHz |
| Power Supply | 7.2 V nominal |
| Dimensions H×W×L | NiMH 1300 mAh: 131.5 × 63.5 × 37.2 mm Li-ion 1500 mAh: 131.5 × 63.5 × 35.2 mm Li-ion 2200 mAh: 131.5 × 63.5 × 39.2 mm Li-ion FM 1400 mAh: 131.5 × 63.5 × 37.2 mm |
| Weight | NiMH: 430 g Li-ion FM: 370 g Li-ion HiCap: 375 g Li-ion Std: 360 g |
| Battery Life (5/5/90 duty, high power) | IMPRES Li-ion Std (1500 mAh): 9 h (A) / 13 h (D) IMPRES Li-ion HiCap (2200 mAh): 13.5 h (A) / 19 h (D) IMPRES Li-ion FM (1400 mAh): 8.5 h (A) / 12 h (D) IMPRES NiMH (1300 mAh): 8 h (A) / 11 h (D) |
| Transmitter | |
| Frequency | Per band ranges above |
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz |
| Frequency Stability | DP3600: ±1.5 ppm (-30 °C to +60 °C) DP3601: ±0.5 ppm |
| Power Output | UHF1 & UHF2: 1 W / 4 W VHF: 1 W / 5 W |
| Modulation Limiting | ±2.5 kHz @ 12.5 kHz ±4 kHz @ 20 kHz ±5.0 kHz @ 25 kHz |
| FM Hum & Noise | -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
| Conducted/Radiated Emission | < -36 dBm (< 1 GHz); < -30 dBm (> 1 GHz) |
| Adjacent Channel Power | -60 dB @ 12.5 kHz; -70 dB @ 20/25 kHz |
| Audio Response | +1 to +3 dB |
| Audio Distortion | 3 % (typical) |
| Digital Vocoder | AMBE+2 |
| Digital Protocol | ETSI-TS 102 361-1,2 & 3 |
| Receiver | |
| Frequency | Per DP3600/3601 platform |
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz |
| Frequency Stability | DP3600: ±1.5 ppm; DP3601: ±0.5 ppm |
| Analogue Sensitivity | 0.35 µV (12 dB SINAD) 0.22 µV (typical) 0.4 µV (20 dB SINAD) |
| Digital Sensitivity | 0.3 µV @ 5 % BER |
| Intermodulation | 65 dB |
| Adjacent Channel Selectivity | 60 dB @ 12.5 kHz; 70 dB @ 20/25 kHz |
| Spurious Rejection | 70 dB |
| Rated Audio | 500 mW |
| Audio Distortion | 3 % (typical) |
| Hum & Noise | -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
| Audio Response | +1 to +3 dB |
| Conducted Spurious Emission | -57 dBm (typical) |
