Vertex VX-231 walkie talkie
- Place of Origin:JP
- Type:Handheld
- Brand Name:Vertex
- Model Number:vertex vx231
- Dimensions:114*52*29.5
- Frequency Range:134-174 /400-470 mhz
- Storage Channel:16 Channels
- Talk Range:3-5KM
- Color:Black
- Warranty:1 Year
- Output Power:VHF 5W UHF 4W
- Battery:1200mAh
- Battery Life:About 9 hours
- Operating Voltage:7.4V LI-ION
- Selective Call:Yes
- With LCD:Have
- IP Rating:IP 54
- Frequency Stability:± 2.5 ppm

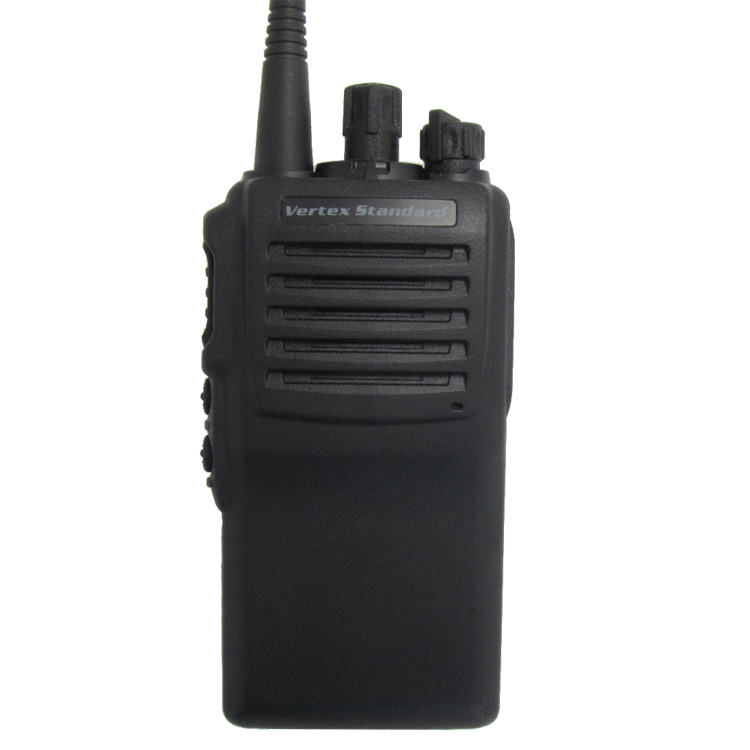

Vertex VX231 VHF/UHF Portable Radios
The Vertex Standard VX-231 provides wider band coverage, more signaling features and improved ergonomics* that adds up to a better return on your investment.
Functions
1). Improved Portability
A radio that won’t get in the way, the VX-231 is more compact and lightweight than the VX-160E series. A radio that is easier to carry with you on the job.
2). More Battery Power
Designed to use powerful Li-Ion battery technology for longer battery life. Includes a 1150 mAh battery providing 9 hours of operation with the battery saver enabled.
3). Wide Band Coverage for Added Value
One radio designed to cover VHF and UHF bands, which provides expanded options in frequencies to use.
4). More Scanning Options
While many radios provide 1 or 2 scanning options, the VX-231 radio gives you 4 additional scanning options for greater convenience and flexibility for the way you need your radios to perform. Options include: Priority, Dual Watch, Follow Me and Talk Around scan.
5). Exclusive Auto-Range Transponding System – ARTS™
Only Vertex Standard radios are designed to inform you when you and another ARTS™-equipped station are within communication range. If out of range for more than 2 minutes, your radio senses no signal has been received and beeps to alert you. The base station can then alert the field unit to move back in range. A great solution to keep your workers coordinated.
| Performance Characteristics | |
| Frequency | VHF:134 - 174 MHz UHF:400 - 470 MHz |
| Number of Channels | 16CH |
| Power Supply Voltage | 7.4V DC±20% |
| Power output | 2W - UHF |
| Channel Spacing | 12.5/20/25 kHz |
| PLL Steps | 5 / 6.25 KHz |
| Battery life (based on a 05 05 90 duty cycle) | 9 hours |
| Dimension (H xW x D) | 110 x 58 x 30 mm |
| Weight (Approx.) | 285g |
| Receiver Specification | |
| Sensitivity 20 dB SINAD | - 3 dBμV emf |
| Adjacent Channel Selectivity | 70 dB |
| Intermodulation | 65 dB |
| Spurious and Image Rejection | 65 dB |
| Audio Output | 500mW @ 4 Ohms 5%THD |
| Transmitter Specification | |
| Output Power | 5 / 1 W |
| Modulation Limiting | ±5.0 kHz @ 25 kHz ±4.0 kHz @ 20 kHz ±2.5 kHz @ 12.5 kHz |
| Modulation | 16K0F3E, 11K0F3E |
| Spurious Emissions | -36 dBm ≤ 1 GHz, -30 dBm > 1 GHz |
| FM Hum & Noise | 45 / 40 dB 25 kHz / 12.5 kHz |
| Audio Distortion | 3 % @1 kHz |
1.Alibaba assessed 8 years gold supplier.
2.We are professional supplier of walkie-talkie,and we are Motorola's authorised dealers,the Hytera six-star Wholesales,Baofeng,KIRISUN,Icom,Ecome and other suppliers.
3.Well trained experienced staff reply all your questions.
4.Customized design is available,OEM are welcomed.
5.Fast delivery to customers all over the world after deposit.
6.100% QC inspection before shipment.
7.One year warranty for radios,six month for accessories.
8.Excellent after-sales service.
1). Payment
General,we accept the following payment methods:T/T(Bank Transfer),Western Union,
Paypal.Our protection only gives the payment ways accepted by Trade Assurance.
2). Shipment
We usually arrange the shipment by express like DHL,EMS,UPS,Fedex,TNT and so on,
thatdependson where you are.
DHL is our first choice because they are faster than others. If you need other special shipping ways,please tell us,we will arrange it for you.
| MOQ | 10PCS |
| Sample | Available,but freight charged on customer |
| Packing | Each one in box packing |
| Delivery Date | Within 5 days after payment confirmed |
| Warranty | 12 month for radio, 3 month for accessory |
FAQ
Q1: Can your radios be customized with my brand?
A: Of course. Generally, logos, outer packaging, patterns, etc. can be customized. The minimum order quantity is usually 200 pieces.
Q2: Can you offer the sample for me to test the quality first?
A: Yes,we can offer the sample, but sample cost and shipping cost need to pay by yourself, the fee will return to you when place order quality.
Q3: Do you have radio agent certificate?
A: Yes,we are, Icom, Hytera, Baofeng,Vertex these radio authorized agent,all of these certificates we have and can offer to you.
Q4: What is your radios warranty?
A: Radio body:1 year, accessories:6 months
Q5: What is your lead time for the radio?
A: 2-3 days for order prepare after we get payment. Add 5-6 days for Express transportation.
