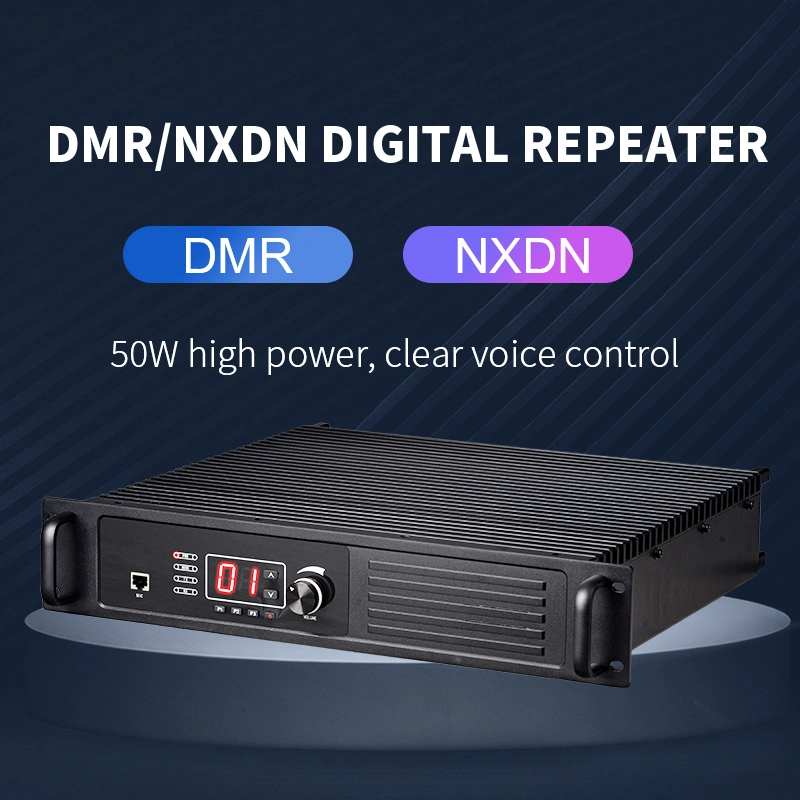

ETMY ET-R50D repeater
ET-R50D
ETMY ET-R50D repeater is a best-in-class communication solution that combines powerful power, flexible connectivity and advanced technology. Whether it is public safety, industrial operations, large-scale events or outdoor activities, ET-R50D can provide excellent performance and reliability.
Description:
VHF: 136~174 MHz
UHF: 400-470MHz
UHF:450-520 MHz
Quantity:
ETMY ET-R50D two way radio repeater,2 way radio repeater,digital repeater for sale
Product Information
DMR Trunking
The ET-R50D delivers DMR Tier III trunking, featuring efficient TDMA technology for high - capacity voice and data services. It supports trunking for dynamic channel allocation and encrypted communication for security, suitable for command - and - control centers and large - scale operations.
Wide Frequency Support
The ET-R50D is a true multi-band repeater, supporting both UHF bands (400-470 MHz / 450-520 MHz) or VHF band (136-174 MHz). This extensive frequency coverage makes it a valuable"vhf repeater"and"two way radio repeater"solution for a wide range of applications, from urban environments to rural areas and everything in between.
50W High Power Output
With a maximum output power of 50W, the ET-R50D ensures powerful signal transmission and extended communication range. This high power output is crucial for overcoming obstacles and ensuring reliable communication in challenging environments.
Large Channel Capacity
The ET-R50D boasts a capacity of 500 channels, with 32 channels per zone. This generous channel capacity allows for efficient management of communication needs, even in large-scale operations where multiple teams or departments need to coordinate.
Compact 2U Design
Despite its robust performance, the ET-R50D features a sleek 2U chassis design. This compact form factor makes it easy to install in various locations, including server rooms, communication cabinets, or mobile command centers.
Advanced Digital System Support
The repeater supports both DMR and NXDN digital systems, offering advanced digital communication capabilities. As a"digital repeater,"it provides users with clearer audio, enhanced data transmission capabilities, and improved spectral efficiency.
Excellent Thermal Performance
Equipped with an efficient cooling system, the ET-R50D ensures stable operation even under high power and prolonged usage. Its superior heat dissipation prevents overheating and extends the lifespan of the equipment.

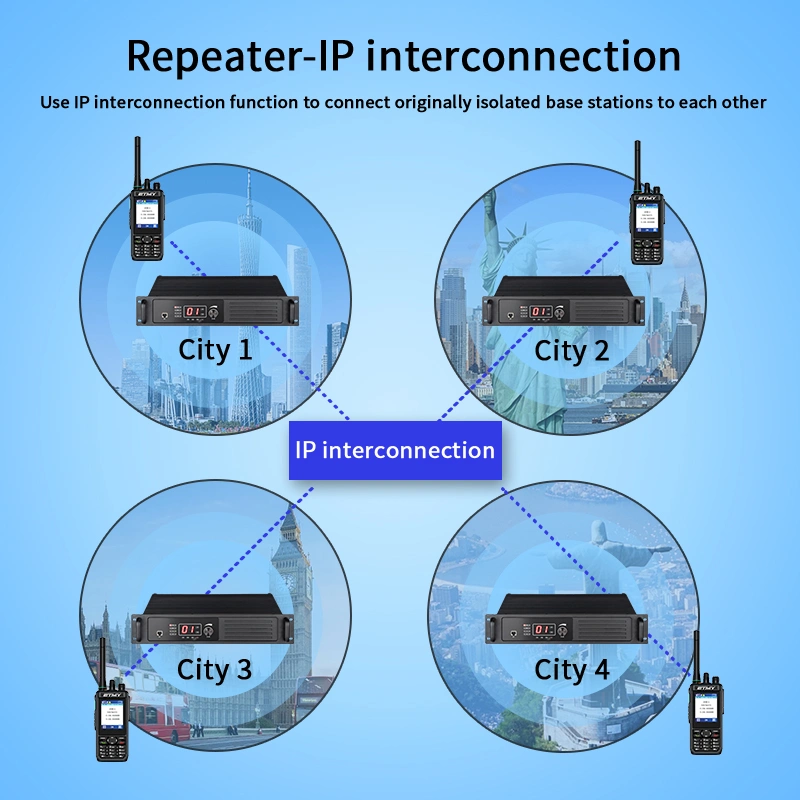

Intelligent IP and Optional Trunking Controller(Optional)
The ET-R50D includes a built-in intelligent IP controller, enabling networked communication and remote management. Additionally, an optional cluster controller can be integrated to form a more extensive and efficient communication network, ideal for large organizations and critical communication infrastructure.
Other functions
- Built- in Trunking Controller(optional)
- Outstanding Heat Dissipation
- Intelligent IP Controller(Optional)
- Multiple Protocols: DMR/NXDN
Accessories
Specifications
```
 Handheld Microphone |  Microphone stand |  Programming Cable |  Power Cable |
Specifications
| General | |
|---|---|
| Frequency Range | VHF (136-174 MHz), UHF Range 1 (350-400 MHz), UHF Range 2 (400-470 MHz) UHF Range 3 (450-520 MHz) |
| Channel Spacing | 6.25 kHz, 12.5 kHz, 25 kHz |
| Vocoder Type | AMBE+2 |
| Channel Capacity | 500(32 channels each zone) |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | DC 13.6V±15%, AC 110V/220V |
| Operating Temperature | -20℃~60℃ |
| Dimensions | 420×483×132.5mm |
| Weight | 15kg |
| Transmitter | |
| Output Power | 5~50W |
| Frequency Stability | +0.5ppm |
| FM Modulation | 16KθF3E / 11KθF3E |
| 4FSK Digital Modulation | Only Data:7K60FXD@12.5kHz Voice & Data:7K60FXW@12.5kHz Only Data:4K00F1D@6.25kHz Voice & Data:4K00F1W@6.25kHz |
| FM Hum & Noise | 40dB@12.5KHz 45dB@25KHz |
| Audio Response | +1 ~ -3dB |
| Audio Distortion | ≤3% |
| Digital FSK Error | <1.5% |
| Adjacent Channel Power | 60dB@12.5KHz, -70dB@20KHz/25 KHz |
| Signal-noise Ratio(SNR) | 40dB@12.5KHz, -45dB@20KHz/25KHz |
| Conducted Spurious | -36dBm@<1GHz, -30dBm@>1GHz |
| Receiver | |
| Analog Sensitivity | 0.3μV(12dB SINAD) 0.22μV(typ.) (12dB SINAD) 0.4μV(20dB SINAD) |
| Digital Sensitivity | 0.28μV(3%BER@12.5kHz) 0.3μV (3%BER@6.25kHz) |
| Channel Selective | 62dB@6.25kHz 70dB@12.5kHz 75dB@25kHz |
| Intermodulation | 70dB |
| Block | 95dB |
| Spurious Response Suppression | 90dB |
| Audio Output Power (<5%) | 2.0W |
| Conducted Emission Spurious | <-57dBm |
FAQ
Q1: Can your radios be customized with my brand?
A: Of course. Generally, logos, outer packaging, patterns, etc. can be customized. The minimum order quantity is usually 200 pieces.
Q2: Can you offer the sample for me to test the quality first?
A: Yes,we can offer the sample, but sample cost and shipping cost need to pay by yourself, the fee will return to you when place order quality.
Q3: Do you have radio agent certificate?
A: Yes,we are, Icom, Hytera, Baofeng,Vertex these radio authorized agent,all of these certificates we have and can offer to you.
Q4: What is your radios warranty?
A: Radio body:1 year, accessories:6 months
Q5: What is your lead time for the radio?
A: 2-3 days for order prepare after we get payment. Add 5-6 days for Express transportation.
