ETMY ET-M680 mobile radio
ETMY ET-M680 vhf uhf mobile radio,radio base vhf uhf,dual band mobile radio
Features
True dual-watch, dual-band, dual-power
As a full dual band mobile radio the ET-M680 listens to 108–136 MHz AM airband while you talk on 146 MHz, or monitors 440 MHz call-down tone while you rag-chew on 2 m. Independent volume knobs end the “menu diving” found in lesser rigs.
55 W VHF / 45 W UHF – the muscle to be heard
High-power MOSFET PA runs cool at 13.8 V, giving 55 W on 144 MHz and 45 W on 435 MHz with < -60 dB spurious. Whether you are atop a mountain or stuck in valley floor, this vhf uhf mobile radio punches through repeaters others only dream of hitting.
Detachable colour face
Pick from seven backlight colours to match dashboard LEDs. The slim control head tilts, swivels and locks, so whether you mount it low on a Wrangler console or high on a Peterbilt overhead shelf, the dual band mobile radio display is always glare-free.
Aviation AM receive
108–136 MHz AM mode with 0.4 µV sensitivity lets you monitor tower, AWOS and flight-following while you drive to the field. No second scanner needed—one vhf uhf mobile radio does it all.
Other Functions
- Dual frequency display
- Squelch function
- Adjustable screen color
- Channel Scan
- VFO Mode
- Monitor function
- CTCSS/DCS
- Busy channellock
Accessories

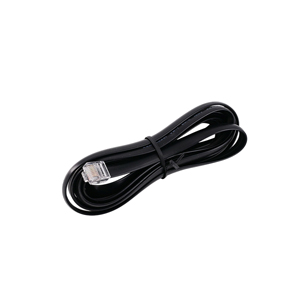

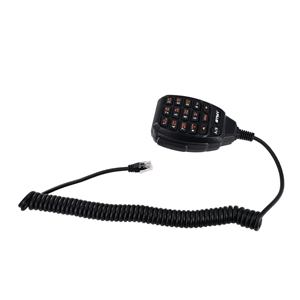

 HandheldMicrophone |  PowerCable |  Bracket |

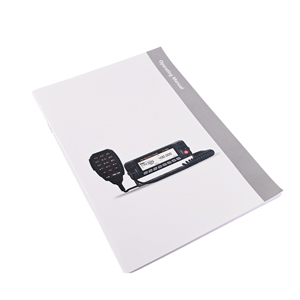

 Programming cable |  User Manual |  MicrophoneStand |
Specifications
| Specification | |
|---|---|
| RX Frequency Range | AM: 108.0000–135.9975 MHz FM: 136.0000–615.9975 MHz |
| TX Frequency Range | FM: 136.0000–174.0000 MHz FM: 400.0000–470.0000 MHz |
| Channel Step Sizes | 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz |
| Modulation / Radiation Modes | F3E (AM), F2D (Narrow DSB), F2A (FM) |
| Antenna Impedance | 50 Ω, Unbalanced (built-in duplex antenna) |
| Frequency Stability | ±5 ppm (–10 °C to +60 °C) |
| Operating Temperature | –20 °C to +60 °C |
| Supply Voltage | 13.8 V DC (±15 %), Negative ground |
| Current Consumption | RX ~0.5 A (Squelch) TX: 9 A (144 MHz, 50 W) / 9 A (435 MHz, 45 W) |
| Dimensions (W×H×D) | 144 × 45 × 189 mm |
| Weight | ≈ 1 kg |
| Transmission Output Power | 55 / 25 / 5 W (144 MHz) 45 / 25 / 5 W (435 MHz) |
| Maximum Frequency Bias | ±5 kHz, ±2.5 kHz |
| Spurious Radiation | < –60 dB |
| Microphone Impedance | 2 kΩ |
| DATA Hole Impedance | 10 kΩ |
| IF / Reception Medium Frequency | 38.85 MHz / 450 kHz |
| Sensitivity (10 dB SINAD) | 108–136 MHz AM: 0.4 μV (typ) 136–174 MHz FM: 0.18 μV 175–400 MHz: 0.8 μV 400–470 MHz FM: 0.17 μV 470–616 MHz FM: 0.25 μV |
| Squelch Sensitivity | Better than 0.158 μV |
| Selectivity | –6 dB / +60 dB; 12 kHz / 30 kHz |
| Maximum AF Output | 4 W @ 8 Ω |
| AF Output Impedance | 4–160 Ω |
