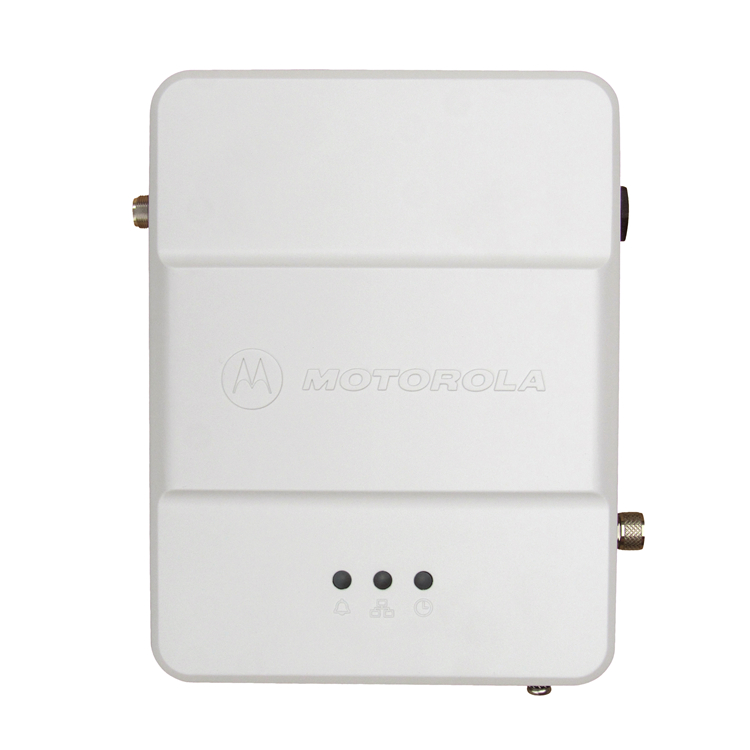

Motorola SLR1000
Motorola SLR1000
The Motorola SLR1000 is a compact two-way radio repeater designed to extend radio frequency coverage while minimizing installation footprint. It provides 10 watts of continuous radio power, making it suitable for environments such as deep parking lots, basements, and campuses.
minimum order:
2 units
Supply Ability:
1000units / Month
Country of Origin:
Guangzhou
Description:
UHF:400-527MHZ
Quantity:
Motorola SLR1000 mototrbo repeater,two way radio repeater for sale
Main features
Flexibility
The Motorola SLR1000 covers the entire 400–527 MHz UHF band; channel steps are selectable at 12.5 kHz or 25 kHz and can be selected via software. 64 preset modes allow the same mototrbo repeater to easily switch between analog normal mode, digital normal mode, IP Site Connect, Capacity Plus, Capacity Max, or Connect Plus modes without any additional operation. Hybrid mode operation allows for gradual upgrades of existing equipment, resulting in more efficient use of budget. An integrated Ethernet port allows voice and GPS data to be transmitted back to the dispatch console or WAVE PTT application.
Easy Installation
The Motorola SLR1000 comes standard with a universal DC power interface and an optional AC/DC power module; regardless of the interface used, its power consumption is very low, allowing it to share a circuit breaker with other devices. A USB-B port on the bottom allows for local programming without opening the casing. A set of bright, clear LED indicators allows for easy on-site monitoring of power, transmission, and digital synchronization status, enabling tower personnel to confirm the mototrbo repeater is functioning correctly before disembarking.
Superior Audio Performance
The SLR1000 uses the same AMBE+2 vocoder as flagship MOTOTRBO users, providing consistent digital clarity at a sensitivity of 0.18 µV. 78 dB adjacent channel rejection and 82 dB intermodulation rejection mean this two-way radio repeater remains quiet even in crowded locations such as casinos or industrial parks. Transmit modulation fidelity is less than 1% distortion, ensuring clear and legible emergency communications.
Remote Management Reduces Operating Costs
Through IP Site Connect, a network technician can perform firmware upgrades, push new channel plans, or run diagnostic programs on all Motorola SLR1000s in the area overnight. If the VSWR rises, the temperature exceeds 60°C, or the power supply voltage drops below 11V, the SNMP trap will alert the Network Operations Center (NOC), proactively arranging on-site service before the user notices a drop in signal strength.
Stable and Reliable
With a Mean Time Between Failures (MTBF) exceeding 100,000 hours, the IP65 sealed system comes with a two-year warranty, extendable to five years. Whether you need a two-way radio repeater to fill a basement dead zone or an IP backbone of 50 Motorola SLR1000 nodes to cover an entire utility grid, the SLR1000 scales without adding complexity.
Other Function
- Channel Spacing (12.5 / 25 kHz)
- Mixed Mode Operation (Analog / Digital)
- IP Site Connect Enable / Disable
- Capacity Plus – Single / Multi-Site
- Capacity Max Trunking
- Connect Plus Trunking
- Extended Range Direct Mode
- AGC Audio Level (Input / Output)
- Diagnostic SNMP Trap Thresholds
- TX Frequency Offset (±0–5 MHz)
- Color Code (0–15)
- Slot Assignment (1/2) for Tier II
- Admit Criteria (Always / Channel Free / Color Code Free)
- USB Service Port Enable / Disable
Accessories
- Power Cord
- Mounting Bracket
- Jumper Cables
- Waterproof plug
- Components
- User manual
Specifications
| Specification | |
|---|---|
| Band (UHF) | 400–527 MHz |
| Channel Spacing | 25 kHz / 12.5 kHz ( selectable ) |
| Frequency Stability | 0.5 ppm |
| Frequency Generation | Synthesizer |
| Channel Capacity | 64 channels |
| RF Output Power (Transmit) | 1–10 W |
| Dimensions (H×W×D) | 11 × 9 × 4 inches (279.4 × 228.6 × 101.6 mm) |
| Weight | ~10 lb (4.54 kg) |
| DC Input Voltage | 12 V (range 11.0–15.5 V) |
| Standby Current | ~0.63–0.7 A |
| Transmit Current | ~3 A (typical) |
| Power Input Mode | DC primary; optional AC/DC power supply |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| IP Rating | IP65 |
| Maximum Duty Cycle | 100% (continuous) |
| Digital Modem | AMBE+2™ |
| Connectors (Location) | Right: Rx (N female); Left: Tx (N female); Bottom: USB-B, 1× Ethernet, RJ45 accessory connector, DC input |
| Operating Modes | Half-duplex / Full-duplex |
| Intermodulation Attenuation | 40 dB |
| Adjacent Channel Power (TIA603D, 25/12.5 kHz) | 78 / 62 dB |
| Adjacent Channel Power (ETSI, 25/12.5 kHz) | 78 / 62 dB |
| Modulation Fidelity | 4FSK; FSK Error 5% |
| Conducted Spurious Emission | FSK amplitude dependent (carrier) |
| Audio Response | -36 dBm ≤ 1 GHz; -30 dBm > 1 GHz |
| Audio Distortion | <1% (TIA603D/ETSI) |
| AN Noise (acoustic) | <1% (25/12.5 kHz) |
| Rated System Deviation (25/12.5 kHz) | -50 / -45 dB; ±5.0 / ±2.5 kHz |
| Receiver Frequency Range | 400–527 MHz |
| Sensitivity (12 dB SINAD) | 0.3 μV (typical 0.22 μV) |
| Sensitivity (5% BER) | 0.25 μV (typical 0.18 μV) |
| Sensitivity (TIA603D, 25/12.5 kHz) | 75/50 dB |
| Sensitivity (TIA603, 25/12.5 kHz) | 75/65 dB |
| Intermodulation Rejection (TIA603D/ETSI) | 80/70 dB (typical 82/73 dB) |
| Spurious Response Suppression (TIA603D/ETSI) | 85/75 dB (typical 95/90 dB) |
| Audio Distortion (Rx) | <3% (typical <1%) |
| AC Noise & Hum (25/12.5 kHz) | -50 / -45 dB |
| Susceptibility | -57 dBm |
