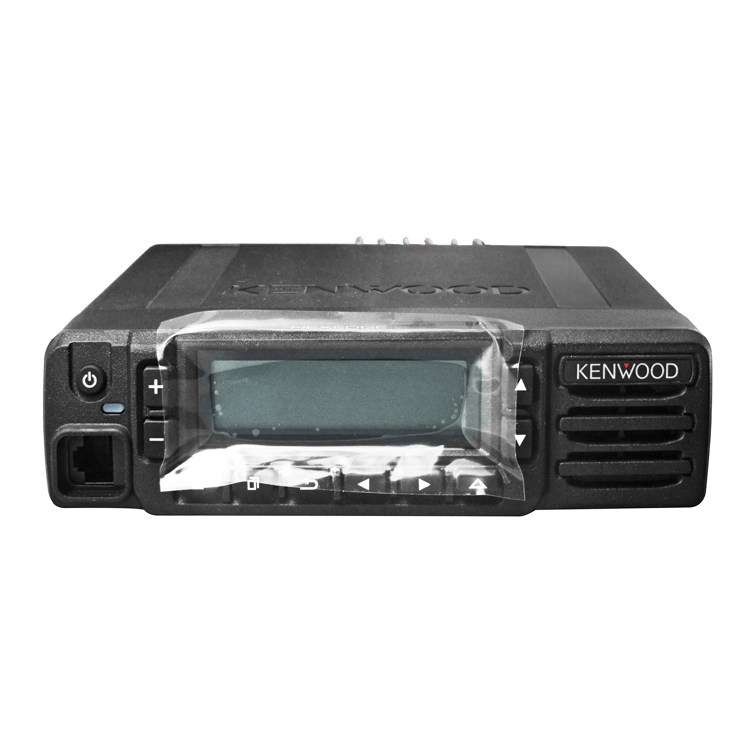

    Kenwood NX-3720 mobile radio

    Kenwood NX-3720
    The Kenwood NX-3720 is a high-quality mobile radio that offers NXDN and DMR digital dual-mode communication for reliable and secure transmissions.
    minimum order:
    1 set
    Supply Ability:
    100.0set / Month
    Country of Origin:
    GuangZhou
    Quantity:
    Contact Now
    add to cart
    Buy Now

    Kenwood NX-3720 DMR 50w kenwood base radio NXDN digital mobile radio



    Kenwood NX-3720 mobile radio is a device with excellent performance. It not only supports DMR digital mode, but also adopts NEXEDGE radio technology independently developed by Kenwood, which brings more stable communication quality and wider signal coverage. At the same time, NX-3720 also supports VHF mobile radio, and has Baseradio function, providing users with more application scenarios. Now, let us take a detailed look at the Kenwood NX-3720 mobile radio.

    NX-3720 supports DMR digital mode. As a digital analog communication technology, DMR uses multiple time division technologies to realize parallel communication of multiple users, and also has the characteristics of high efficiency, low power consumption, high voice quality, and stable signal. As a highly intelligent radio equipment, NX-3720 supports DMR digital analog technology to meet the communication requirements of professional users.

    The NX-3720 uses NEXEDGE radio technology independently developed by Kenwood. As a real digital radio communication system, NEXEDGE can provide stable communication services in a wide geographical range. Using NEXEDGE technology has many advantages, such as high encryption, no secondary interference, terminal and network management system, and can be quickly configured and integrated according to user needs.

    The frequency band has the advantages of long signal transmission distance and 50W strong penetrating power, and is widely used in various fields. NX-3720 adopts VHF frequency band, which can provide wider signal coverage, support intercommunication with other radio equipment, and has high communication stability, which is convenient for enterprises and individuals to maintain communication during the process of moving.

    NX-3720 also has the function of Base radio, using Base radio technology can realize a host to control multiple slaves for communication. This method can save the purchase and maintenance costs of a large number of radio communication equipment, making wireless communication more intelligent and efficient.


    Features

    • NXDN Type-C & Gen2 Trunked
    • NXDN Conventional
    • 6.25 & 12.5 kHz Channels
    • All Group Call
    • Over-the-Air Alias (OAA)
    • Over-the-Air Programming (OTAP)
    • Complies with ETSI DMR Tier II standards
    • Two-slot TDMA in 12.5 kHz channels
    • Call Interruption
    • Dual-slot Direct Mode
    • ARC4 Encryption



    Specification

    GENERAL
    Frequency RangeVHF:136-174 MHz
    Max.Channels per RadioUp to 1000 channels with option
    Number of Channels512
    Number of Zones128
    Analog
    Channel Spacing
    Digital    		12.5/15/25*I30*kHz
    6.25/12.5kHz
    Operating Voltage13.6vDC+/-15 %
    Standby
    current Drain       RX
    Tx    		0.45A
    2.3A
    12A
    Operating Temperature-22Fto +140°F(-30°C to +60C)
    Frequency Stability士1.0 ppm (-22°F to +140°F)
    Antenna lmpedance50 Ohms
    Dimensions (WxHxD)
    Radio with Control Head
    *Projections not included    		6.30 x 1.69 x6.30 in (160 x43x 160 mm)
    Weight (net)
    Radio with Control Head    		2.65 lb (1.2 kg)
    Type 1
    FCC ID
    Type 2    		K44479200
    　
    Type 1
    lC Certification
    Type 2    		282F-479200
    　
    RECEIVER
    NXDN 6.25 kHz Digital,3 %BER
    NXDN 12.5 kHz Digital,3 % BER
    Sensitivity   DMR 12.5 kHz Digital,5 % BER
    DMR 12.5 kHz Digital,1 % BER
    Analog,12 dB SINAD    		0.20 uv
    0.25 uv
    0.30 pv
    0.45 uv
    0.25 pV
    Analog @12.5kHz
    Selectivity
    Analog @25 kHz    		70 dB
    80 dB
    lntermodulation70 dB
    Spurious Rejection80 dB
    Audio Distortion2%
    Audio Output4 w/4 Ohms
    TRANSMITTER
    RF Power Output (High /Mid / Low)50 w / 30 w/5w
    Spurious Emission-73 dB
    FM HumAnalog @25kHz
    &NoiseAnalog @12.5 kHz    		45 dB
    40 dB
    Audio Distortion2%
    Digital ProtocolETSITS 102 361-1,-2,-3
    Emission Designator16KOF3E*，11KOF3E,8K30F1E,8K3OF1D,8K3OF7W,
    7K6OFXD,7K6OFXE,4KOOF1E,4KOOF1D,4KOOF7W,
    4KOOF2D
