Motorola GM3188 mobile radio
motorola gm3188 base radio motorola mobile radio for sale
The GM3188 is suitable for industries with strong mobility, such as construction, manufacturing, and transportation industries such as taxis, express delivery, and transportation services. It enables these industries to communicate without paying high per-minute call charges.
GM3188 provides a feature-rich expansion interface, we can use this interface to complete many useful functions, so that two GM3188 and few electronic components can form a conventional repeater.
Functions
- Programming function Quick Call II signaling
- Call alert
- DTMF signaling
- Channel monitoring
- Public broadcasting
- Emergency call
- Walkie-talkie check
- Selective walkie-talkie kills remotely
- Strict/Normal Squelch

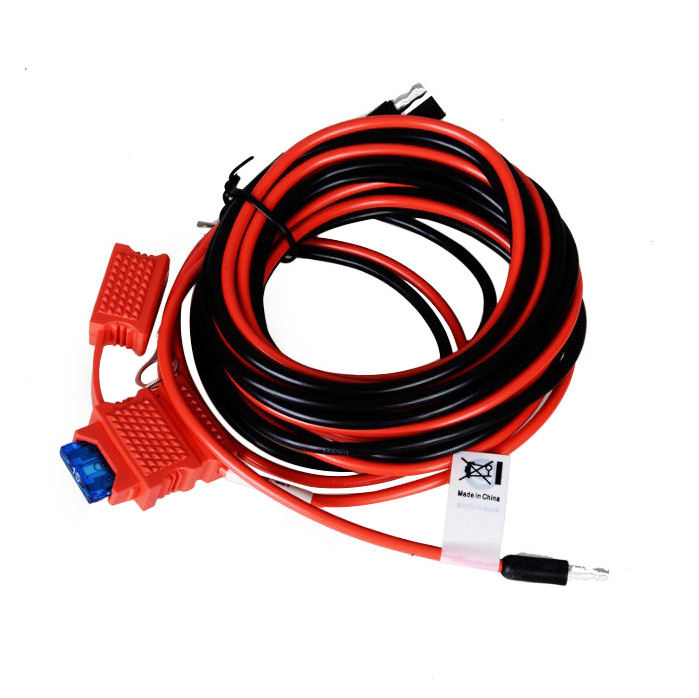

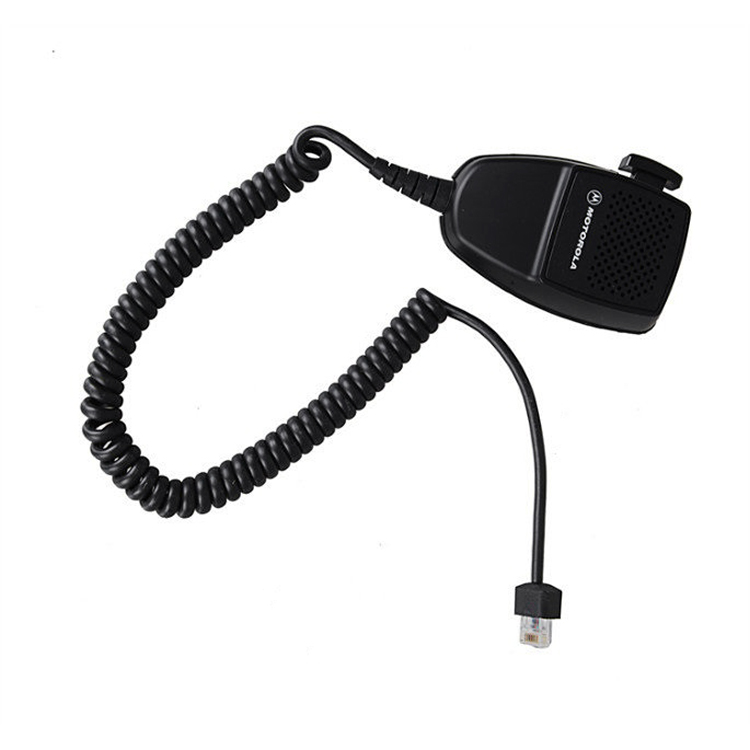

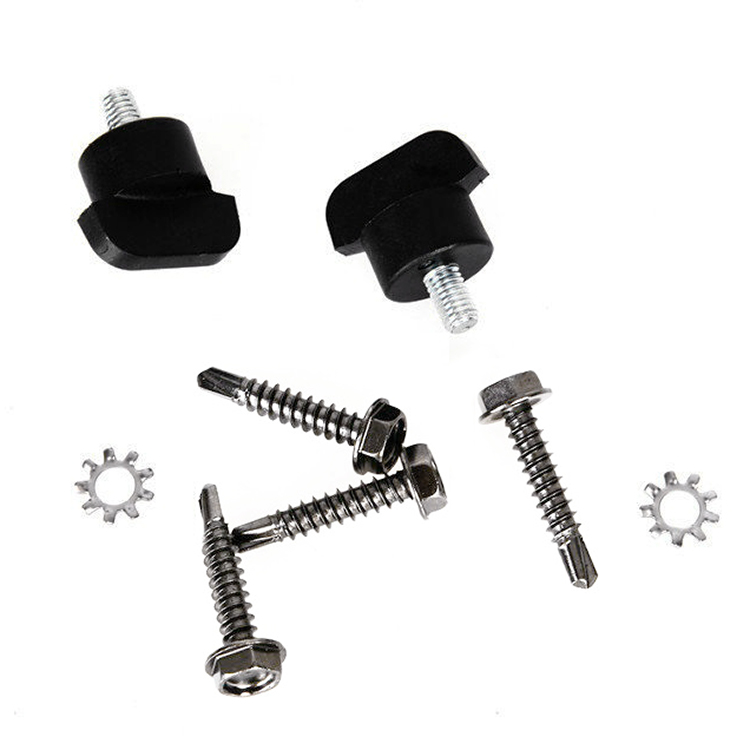

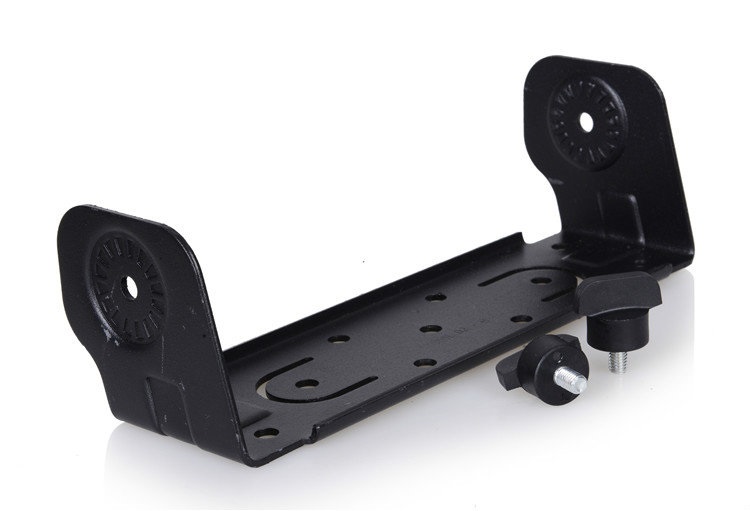

 HandheldMicrophone |  PowerCable |  Bracket |
 Components |
Specifications
| Conventional indicators | ||||
| VHF | UHF | |||
| Frequency band | 136-162MHz 146-174MHz | 403-445 MHz 438- 470 MHz 465-495 MHz | 490- 527 MHz | |
| Channel capacity | 8 | |||
| Power output | 1-25W 25-45W | 1-25W 25-40W | 25W 25-40W | |
| power supply | 13.8 Vdc (11 Vd-16.6 Vdc) negative vehicle ground | |||
| Channel spacing | 12.5/20/25kHz | |||
| Frequency stability (-30'C, +60'C, +25'C reference) | +/- 2.5ppm | |||
| Dimensions (Height X Width X Thickness) | 44 mmX 169mmX 118 mm | |||
| weight | 1.01 kg | |||
| Operating temperature | -30c to +60'C | |||
| Sealed | Meet IP54, pass rain and dust test | |||
| Shock and vibration | Comply with U.S. military standards MIL -STD 810-C, D&E and TIA/EIA 603 | |||
| Receiver | ||||
| VHF | UHF | |||
| Sensitivity (12 dB SINAD) typical | 0.35uV (12.5KHz) 0.30uV (25KHz) | |||
| Intermodulation | 65dB (12.5KHz) 75dB (25KHz) | 60dB (12.5KHz) 70dB (25KHz) | ||
| Adjacent channel selectivity | 65dB (12.5KHz) 75dB (25KHz) | 60dB (12.5KHz) 70dB (25KHz) | ||
| Spurious suppression | 75 dB | 70dB | ||
| Rated audio (4 ohm speaker extended audio) | 4W built-in speaker 13W external speaker | |||
| Audio distortion at rated audio | 3% typical | |||
| Hum and noise | -40 dB (12.5KHz) 45dB (25KHz) | -35dB (12.5KHz) -40dB (25KHz) | ||
| Audio response (300-3000Hz) | +1, -3 dB | |||
| Conducted stray radiation | -57 dBm<1 GHz -47 dBm>1 GHz | |||
| Transmitter | ||||
| VHF | UHF | |||
| Modulation limit | Earth 2.5KHz (12.5KHz) Earth 4KHz (20KHz) Earth 5KHz (25KHz) | |||
| FM hum and noise | -40dB (12.5KHz) -45dB (25KHz) | -35dB (12.5KHz) -40 dB (25KHz) | ||
| Conducted/radiated power 1-25W 25-40/45W | -36 dBm<1 GHz -30 dBm>1 GHz -26 dBm | |||
| Adjacent channel power | -60dB (12.5KHz) -70dB (25KHz) | |||
| Audio response (300-3000Hz) | +1, -3 dB | |||
| Audio distortion @1000Hz, 60% of rated maximum | 3% typical | |||
FAQ
Q1: Can your radios be customized with my brand?
A: Of course. Generally, logos, outer packaging, patterns, etc. can be customized. The minimum order quantity is usually 200 pieces.
Q2: Can you offer the sample for me to test the quality first?
A: Yes,we can offer the sample, but sample cost and shipping cost need to pay by yourself, the fee will return to you when place order quality.
Q3: Do you have radio agent certificate?
A: Yes,we are, Icom, Hytera, Baofeng,Vertex these radio authorized agent,all of these certificates we have and can offer to you.
Q4: What is your radios warranty?
A: Radio body:1 year, accessories:6 months
Q5: What is your lead time for the radio?
A: 2-3 days for order prepare after we get payment. Add 5-6 days for Express transportation.
